[ MODEL:JT-SDJ ]

automatic deburring machine for sheet metal
info
video
DOWNLOAD THE BROCHURE
Product Book
REQUEST INFO
Contact us
MACHINE DETAILS

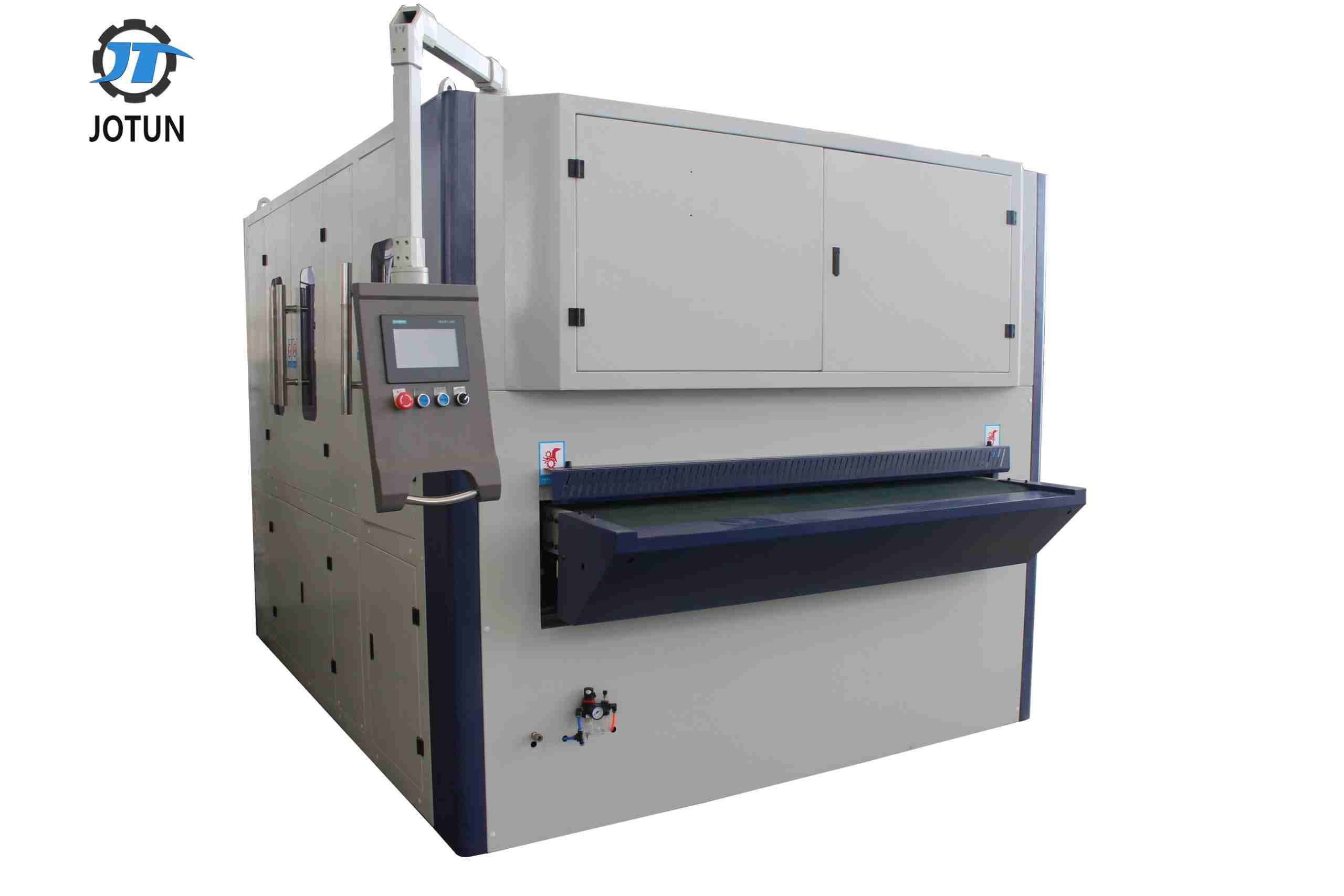

Automatic deburring machine

Function: sheet metal ,grinding,polishing ,remove metal deburrs

Structure: double belts/ belts+brush roller/brush roller/hairline brush roller

belt grinding machinemetal deburring machine for aluminum

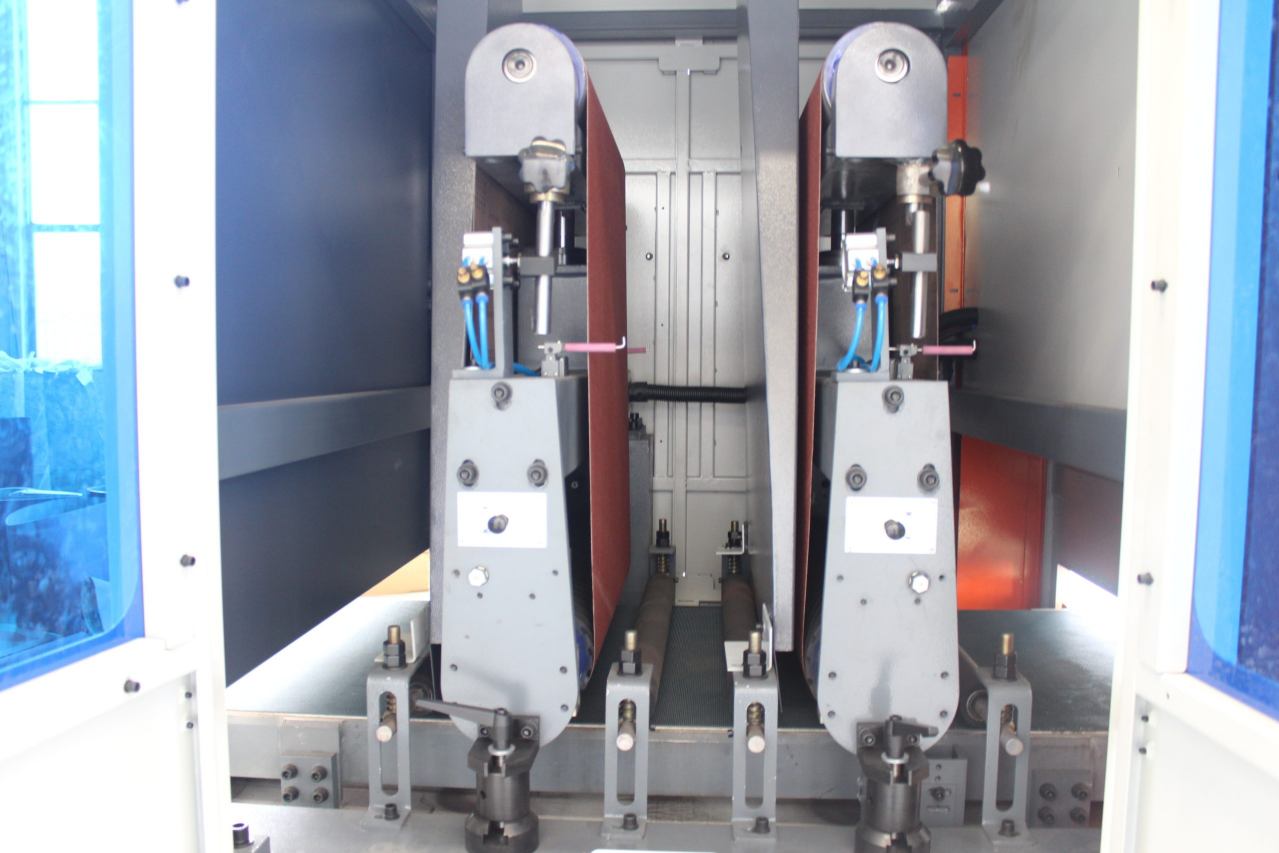

  • This machine is with double belts, it is suitable for carbon steel plate, stainless steel plate, copper plate,aluminum plate etc.,
  • adjust the corresponding grinding parameters and select the appropriate abrasive according to the different surface requirements of the workpiece.
    Surface brushing to remove slag function

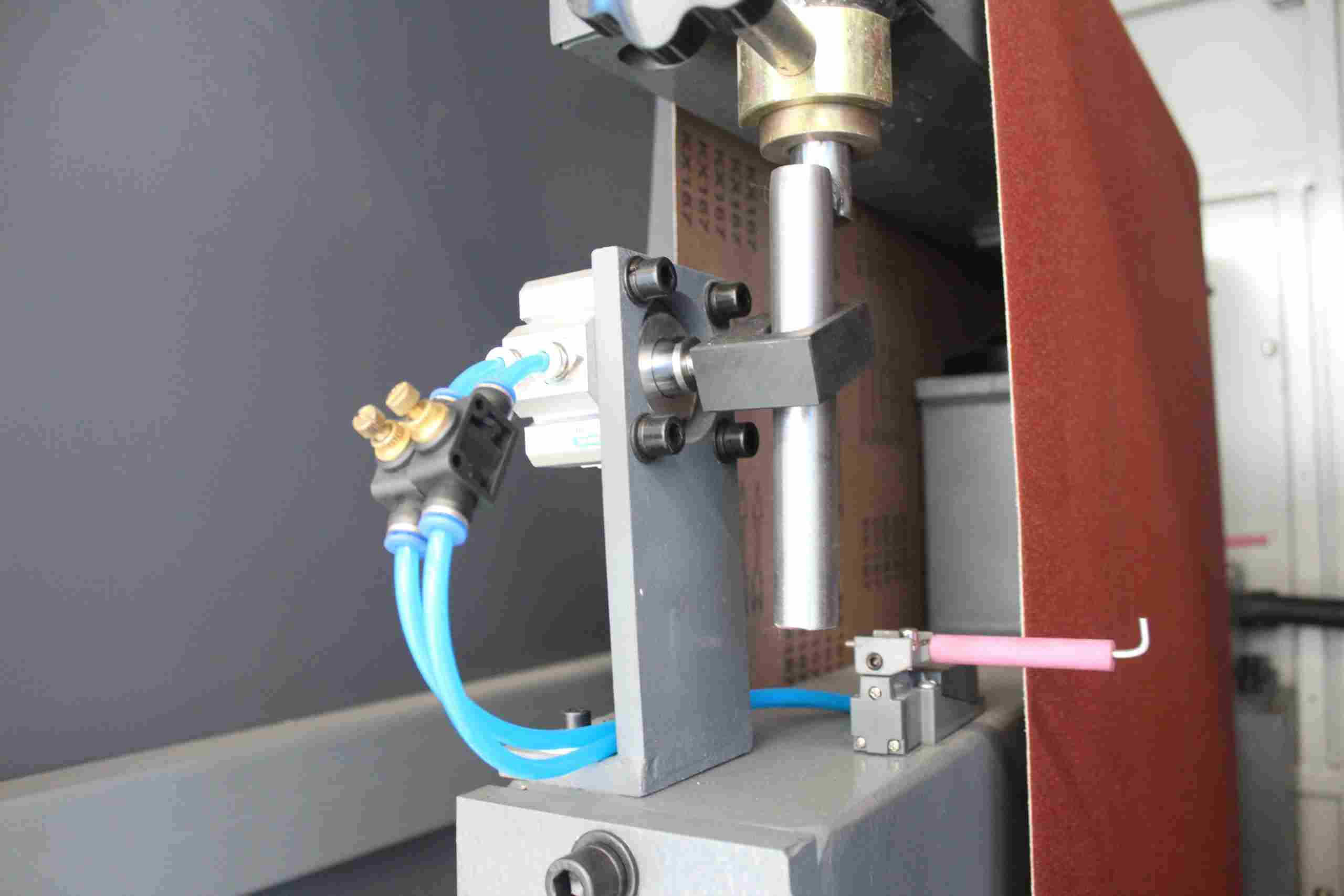

  • Belt automatic deviation correction function
    This equipment is equipped with a set of pneumatic deviation correction system, without manual intervention, the abrasive belt can find the swinging action point in a very short time, so that the abrasive belt does not deviate, so that the parts will not deviate during processing.
  • High temperature wear-resistant and anti-damping conveyor belt
    The equipment is equipped with a high-damping and wear-resistant conveyor belt. The conveyor structure and conveyor belt are designed for easy maintenance and replacement; the conveyor belt passes through high temperature during use, which can effectively absorb workpieces and increase the service life of the conveyor belt.Technical parameter:
  • Grinding max width:600mm,800mm,1000mm,1300mm,1500mm,1600mm
  • Grinding sheet thickness:0.5-80mm
  • Belt grinding motor:7.5kw ;hairline brush grinding motor:5.5kw;conveyor motor:1.5kw;lift motor:0.37kw
  • Controller:PLC
  • Adsorption optional: Vacuum ,Magnetic
  • automatic deburring machine for sheet metal
  • automatic deburring machine for sheet metal
  • automatic deburring machine for sheet metal
  • automatic deburring machine for sheet metal
